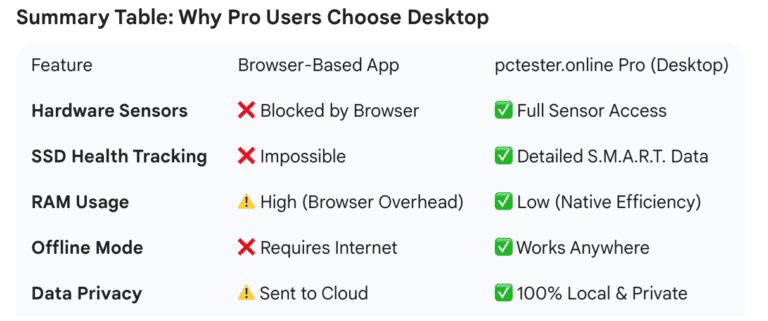

1. Native Application Architecture vs. Browser Limitations
Browser-based diagnostics such as our Online System Tester provide immediate hardware checks without requiring installation. However, all modern web browsers operate inside an unprivileged security sandbox. Chromium and WebKit restrict JavaScript APIs to prevent hardware-level fingerprinting and protect against side-channel exploits.
Because of these constraints, a browser cannot determine which soldered memory bank is throwing faults, read low-level NVMe SMART wear registers, or examine physical bus topology. PCTester Pro functions as a native, non-sandboxed utility, accessing standard user-mode operating system management endpoints to provide complete hardware visibility without sending any data over the internet.
Browsers cannot access SMBIOS tables, drive serials, or memory module layouts.
Restricted by security policiesPCTester Pro uses standard OS interfaces to read Type 17 memory topologies and cache lines.
Direct hardware dataExecutes entirely on your local machine with zero telemetry transmission or cloud polling.
100% Local execution2. Comparison: PCTester Pro vs. Common Diagnostic Utilities
Technicians frequently rely on separate individual utilities to inspect a system: CPU-Z for clock frequencies, HWiNFO for sensor metrics, and CrystalDiskInfo for disk health. The table below outlines how PCTester Pro compares in practical utility scope as of September 2026:
| Diagnostic Capability | PCTester Pro Desktop | CPU-Z | HWiNFO | CrystalDiskInfo |
|---|---|---|---|---|
| Cross-Platform Support | Windows & macOS | Windows Only | Windows Only | Windows Only |
| Driver Footprint | Standard User-Mode APIs | Loads Kernel Driver | Loads Kernel Driver | Standard Storage Queries |
| Scope of Hardware Audited | Unified (CPU, RAM, GPU, NVMe, Audio, Wi-Fi) | CPU, Cache & Mainboard | Full Component Sensors | Storage Drives Only |
| Local RF Signal & Wi-Fi Analysis | Local RSSI & Channels | No | Network Adapter Status | No |
| Data Privacy Stance | No Data Leaves Machine | Optional update query | Optional update query | Optional update query |
3. Processor Architecture: CPU Cache Hierarchies & Clock States
Rather than displaying only a single aggregated load metric, PCTester Pro reads clock states and multi-tiered cache layouts via the standard user-mode CPUID instruction interface and OS management objects. Below is a representative hardware scan of an 11th Gen Intel® Core™ i5-1135G7 processor:
Application responsiveness is heavily influenced by cache efficiency. Mapping the 192 KB L1 cache, 5 MB L2 cache, and 8 MB shared L3 cache alongside real-time operating frequencies helps users determine whether system slowdowns stem from thermal throttling or memory subsystem latency.
4. Physical Memory: SMBIOS Type 17 Bank Structures & Swap Usage
While generic system monitors treat RAM as a single unified pool, PCTester Pro queries motherboard firmware tables via SMBIOS Type 17 records. This reveals the configuration of soldered and socketed memory modules alike:
| Bank Identifier | Capacity | Standard | Rated Speed | IC Manufacturer |
|---|---|---|---|---|
| BANK 0/0 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
| BANK 1/1 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
| BANK 2/2 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
| BANK 3/3 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
| BANK 0/4 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
| BANK 1/5 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
| BANK 2/6 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
| BANK 3/7 | 1 GB | LPDDR4 | 4267 MHz | Micron Technology |
5. Storage Subsystems, GPU Pipelines & Display Panels
Storage evaluation involves reading controller registers and partition mount points. The application identifies physical drive identities and reports volume utilization across all mounted filesystems:
💾 Physical Storage & Partition Allocations
| Drive Model | Media Type | Total Capacity | Interface | Controller Serial |
|---|---|---|---|---|
| KBG40ZNS256G NVMe KIOXIA | Solid State Drive (SSD) | 238.47 GB | NVMe PCIe | 0100_..._REDACTED |
Partition Free Space
| Mount Point | Filesystem | Allocated | Used | Available | Status |
|---|---|---|---|---|---|
| C: | NTFS | 109.92 GB | 95.26 GB | 14.65 GB | 86.7% (Low Space) |
| D: | NTFS | 88.05 GB | 18.92 GB | 69.12 GB | 21.5% (Healthy) |
🎮 Graphics Adapter & Display Panel
Note: Data captured from a Microsoft Surface Laptop reference system running Windows 11.
6. Network Radios, USB Controllers & Peripheral Trees
Diagnosing intermittent Wi-Fi drops, peripheral handshake failures, and sound anomalies requires auditing low-level communication buses without transmitting private network data:
📡 Intel Wi-Fi 6 AX201 Radio Telemetry
🔌 USB Controllers, Audio DSPs & Battery Metrics
| Component Identity | Hardware Type | Vendor / Architecture | Current Status |
|---|---|---|---|
| Intel® Smart Sound for USB Audio | Audio DSP | Intel Corporation | 3 IO Channels Active |
| Surface High Definition Audio | Sound Driver | Realtek Audio Codec | Active Codec |
| Intel(R) USB 3.10 xHCI Controller | Host Controller | Generic USB Host | Active Host Bus |
| SurfaceBattery1 | Internal Battery | Reported System Pack | 18% (Low Charge) |
| Canon TS8300 series | Print Spooler | Local Driver | Default Active ★ |
7. Platform Differences & Operating System Permissions
To balance deep diagnostic insight with modern OS security boundaries, PCTester Pro utilizes platform-native query interfaces:
- On Windows (10/11): The software uses WMI, SetupAPI, and CPUID instructions to inspect hardware. While high-level specs run with normal user rights, reading direct NVMe SMART health attributes and raw drive telemetry requires running the application as Administrator.

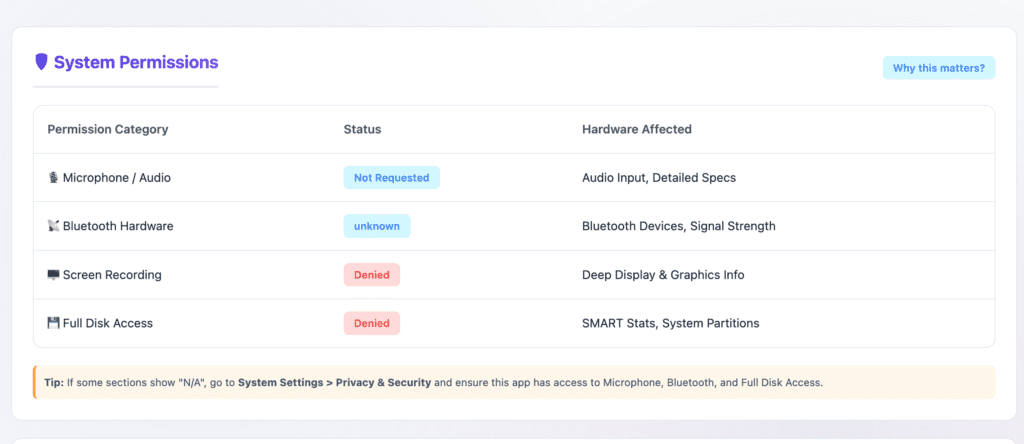

- On macOS: The application queries IOKit and
sysctlregistries. Because Apple restricts direct physical disk and hardware access, reading NVMe SMART wear requires granting Full Disk Access in System Settings > Privacy & Security.
8. Frequently Asked Questions (FAQ)
Why run a desktop diagnostic application instead of online browser utilities?
Web browsers run JavaScript inside an isolated sandbox to prevent device fingerprinting and side-channel exploits. This prevents browser apps from reading physical SMBIOS RAM module layouts, CPU cache sizing, raw NVMe SMART health attributes, and discrete peripheral buses. A native desktop application reads these directly through standard operating system management APIs.
Does PCTester Pro transmit hardware telemetry or personal data to remote servers?
No data leaves your device. All hardware queries, memory metrics, and sensor statistics remain strictly on your local machine with zero external analytics tracking.
Does PCTester Pro require administrator privileges?
Most inventory features (CPU cache, memory module counts, display and network specs) run with standard user rights. However, reading direct NVMe SMART health metrics on Windows requires running the app as Administrator, while macOS requires granting Full Disk Access in System Settings.
How does PCTester Pro compare to standalone utilities like CPU-Z, HWiNFO, and CrystalDiskInfo?
While CPU-Z focuses on clock frequencies, HWiNFO on deep sensor monitoring via kernel drivers, and CrystalDiskInfo strictly on storage drives, PCTester Pro consolidates hardware inventory, memory bank topologies, storage partitions, peripheral discovery, and network metrics into a single unified interface that runs across Windows and macOS without installing background driver hooks.
Specializes in operating system internals, hardware diagnostic benchmarks, and web-based diagnostic utilities since 2013. Builds native utilities designed for transparent, user-controlled diagnostic reporting without external data capture.
